SPECIFICATII TEHNICE
Mechanical Specifications
|
Cross. Area: |
4 / 11 mm2/AWG |
|
No. Conductors: |
2 |
|
No. Wires: |
511 |
|
Wire Diameter: |
0.10 mm |
|
Wire Material: |
Tin plated OFC |
|
Jacket: |
Heat & Ageing Resitant PVC |
|
Ext. Size: |
4.8x9.6 mm |
|
Weight: |
108 g/m |
|
Halogen Free |
yes |
Electrical performance
|
Resistance: |
4.3 Ohm/km |
|
Inductance: |
0.55 µH/m |

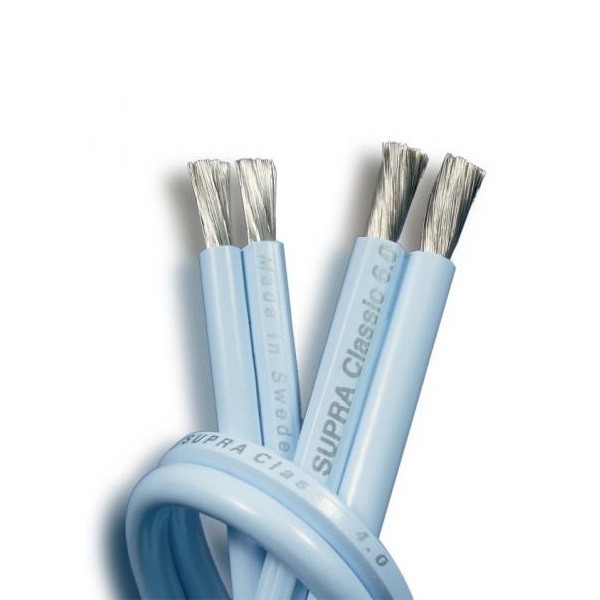

Classic Series
The Classic series comprises flexible tin plated multi strand Oxygen-Free copper with 5N purity! This means that the copper purity must better than 99.999%. In addition to the corrosion resistant tin plating, the insulation of a select grade chemically stable PVC further enhance the sonically benign tin surface over time. The tin plating contributes also to a much wanted skin-effect reduction and forces the electrons from disruptive ”jumps” between the strand surfaces.
The Classic series is suitable for small/low power to high power systems or for long cable runs.
