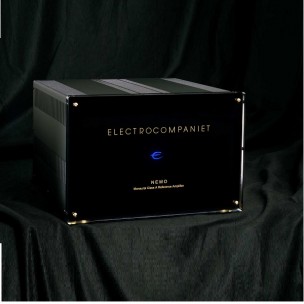

Specificatii Tehnice pentru eLECTROCOMPANIET AW600 (NEMO)
|
Amplifier section |
|
|
|
|
|
Clipping point of the preamplifier is set to a level where total harmonic distortion (THD) is 0.2% |
|
|
Input Impedance (Fixed) |
330 kohm |
|
Output Impedance (20 Hz-20kHz) |
< 0,009 Ohm |
|
Frequency response (DC - 65 kHz) |
- 0.4 dB |
|
Input level for rated output |
1 V RMS |
|
Max. peak current |
> 150 A |
|
THD(measured at 1 kHzhalf power,8W) |
< 0,001 % |
|
THD (measured at 1 kHz -1 dB, 8 W) |
< 0,0015 % |
|
Noise (measured with bothinputsshorted) |
400 Hz - 30 kHz : 150 µV DC - 30 kHz : 200 µV |
|
Damping factor (20 Hz - 20 kHz) |
> 850 |
|
|
|
|
|
|
|
Rated output power |
|
|
|
|
|
8 ohms |
600 W |
|
4 ohms |
1200 W |
|
|
|
|
Power consumption (no load or signal) |
230 W |
|
|
|
|
The NEMO is DC coupled from input to output |
|
|
|
|
|
Dimensions |
|
|
Width |
465 mm / 18.3 inches |
|
Depth |
450 mm / 17.7 inches |
|
Height |
288 mm / 11.3 inches |
|
Weight |
41 kg. / 90.2 lbs. |
The AW600 incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of a conventional power supply, a first class overall circuit design and state-of-the-art components
Power and control, but with a liquid, spacius and effortless aproach that removes any hint of electronic interference, leaving only sheer, clear music in their wake. Extreme sonic value for money, they set a new standard for power amplification.
Audio&Video South Africa
"Absolut Spitzenklasse, Überagend-58 punkte."
(59 points is the highest score on a poweramplifier tested in Stereoplay, and it cost 2-3 times more)
Stereoplay Germany
"A Manly Man Of An Amplifier"
- Up with the best valvejobs I've ever heard, and grainless liquidity that no other solid-state amplifier I've heard can match.
A cross between a singel ended triode and Arnold Schwarzenegger. Unlimited power and bottom slam, handles complexity without a hint of confusion. Enormously wide and deep soundstage. I would pick them over every other solid-state amplifier I've heard.
Ultimate Audio, Winter 2000
