Specificatii Tehnice pentru eLECTROCOMPANIET AW400
| Amplifier section | |||
| Clipping point of the preamplifier is set to a level where total harmonic distortion (THD) is 0.2% | |||
| Input Impedance (Fixed) | 330 kohm | ||
| Output Impedance (20 Hz-20kHz) | < 0,01 Ohm | ||
| Frequency response (DC - 65 kHz) | - 3 dB | ||
| Input level for rated output | 1 V RMS | ||
| Max. peak current | > 150 A | ||
| THD(measured at 1 kHzhalf power,8W) | < 0,006 % | ||
| THD (measured at 1 kHz -1 dB, 8 W) | < 0,007 % | ||
| Noise (measured with both inputs shorted) |
400 Hz - 30 kHz : 130 µV DC - 30 kHz : 200 µV |
||
| Rated output power | |||
| 8 ohms | 400 | ||
| 4 ohms | 765 | ||
| 2 ohms | 1010 | ||
|
|||
| Dimensions | |||
| Width | 358 mm / 14.1 inches | ||
| Depth | 470 mm / 18.5 inches | ||
| Height | 261 mm / 10.2 inches | ||
| Weight | 25 kg. / 55 lbs. | ||

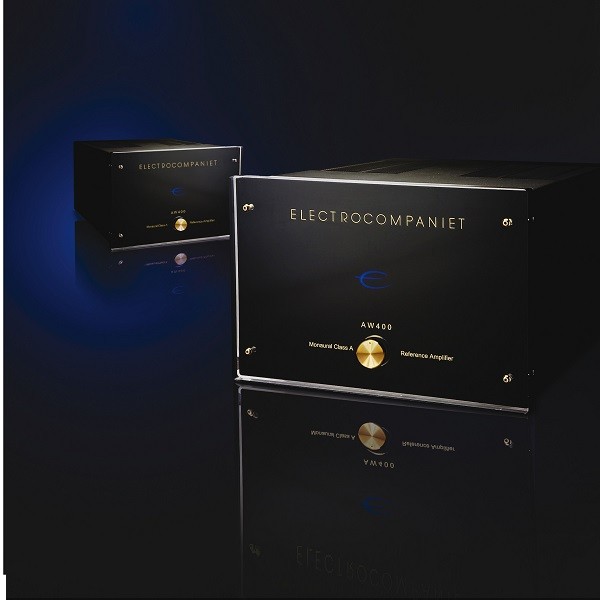

The Electrocompaniet AW400 power amplifier is based on the design philosophy of the highly acclaimed AW180 M monaural power amplifier.
The AW400 incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of a conventional power supply. First class overall circuit design and state-of-the-art components. Uncompromising sonic and mechanical quality.
a 650 VA FTT transformer and a current reservoir of 150.000uF delivers
1 x 400 W of clean and powerful dynamics into an 8 Ohms load. Just like the rest of our power amplifiers, the AW 400 is stable down to 0,5 Ohms. The Electrocompaniet AW 400 features a balanced link to additional amplifier(s) for bi-amping. It can easily be used in bridged mode, delivering up to four times the power.
| All measurements are made at 120V / 240V //50Hz / 60Hz |
