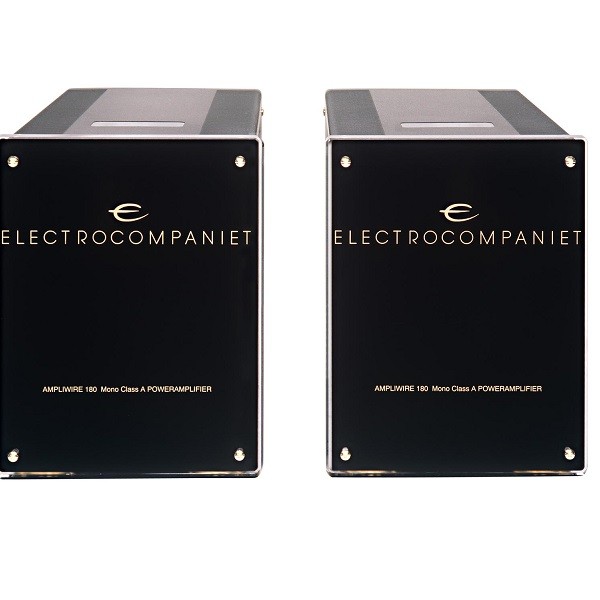

Specificatii Tehnice pentru eLECTROCOMPANIET AW180
| Amplifier section | |
| Output Impedance (20 Hz - 20 kHz) |
< 0,008 ohm |
| RCA (single) input impedance | 220 kohm |
| XLR (balanced) input impedance | 110 kohm |
| Input sensivity for rated output | 1 V |
| Max. peak current | > 100 A |
| THD (measured at 1 kHz half power, 8 W) |
< 0,001 % |
| THD (measured at 1 kHz -1 dB, 8 W) |
< 0,001 % |
| Noise (measured with both inputs shorted) |
400 Hz - 30 kHz : 90 µV 10 Hz - 30 kHz : 100 µV |
| Rated output power | |
| 8 ohms | 250 W |
| 4 ohms | 380 W |
| 2 ohms | 625 W |
| Power consumption (no load or signal) |
115 W |
| Dimensions | |
| Width | 215 mm / 8.5 inches |
| Depth | 470 mm / 18.5 inches |
| Height | 288 mm / 11.3 inches |
| Weight | 22 kg. / 48.4 lbs |
The AW180M incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of a conventional power supply, a first class overall circuit design and state-of-the-art components. The Electrocompaniet AW180M features a balanced link to additional amplifier(s) for bi-amping. It can easily be used in bridged mode, delivering up to four times the power.
| All measurements are made at 120V / 240V //50Hz / 60Hz |
