Specificatii Tehnice pentru eLECTROCOMPANIET AW250-R
| Amplifier section | |
| Output Impedance (20 Hz - 20 kHz) | < 0,008 ohm |
| XLR (balanced) input impedance | 110 kohm |
| Input sensitivity for rated output | 1 V |
| Max. peak current | > 100 A |
| THD (measured at 1 kHz half power, 8 W) |
< 0,001 % |
| THD (measured at 1 kHz -1 dB, 8 W) |
< 0,001 % |
| Noise (measured with both inputs shorted) |
400 Hz - 30 kHz : 90 µV 10 Hz - 30 kHz : 100 µV |
| Rated output power | |
| 8 ohms | 2 x 250 W |
| 4 ohms | 2 x 380 W |
| 2 ohms | 2 x 625 W |
| 1 ohms | 2 x 1100 W |
| Power consumption (no load or signal) | 230 W |
| Dimensions | |
| Width | 483 mm / 19 inches |
| Depth | 450 mm / 17 inches |
| Height | 210 mm / 8.2 inches |
| Weight | 39 kg. / 85.8 lbs. |

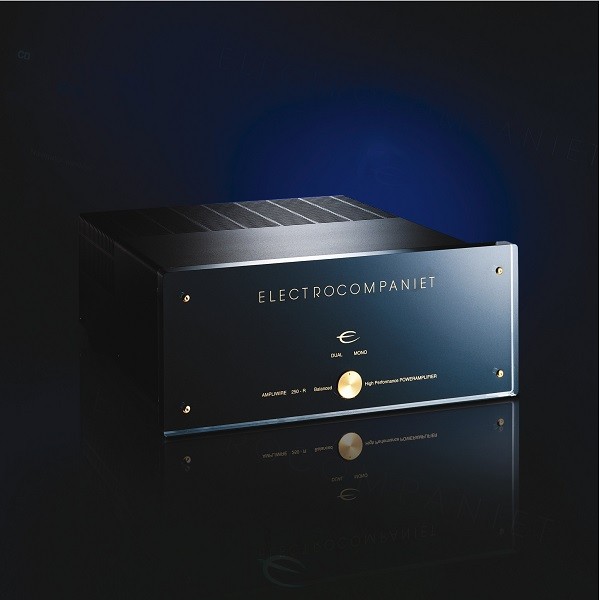

The AW250R incorporates such refined features as: FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of conventional power supply designs, as well as first class overall circuit design and state-of-the-art components.
The AW250R features a balanced link to additional power amplifier(s). Compared to more expensive High-End power amplifiers, with lesser performance, you will truly cherish the AW250R. The Electrocompaniet AW250R features a balanced link to additional amplifier(s) for bi-amping. It can easily be used in bridged mode, delivering up to four times the power.
