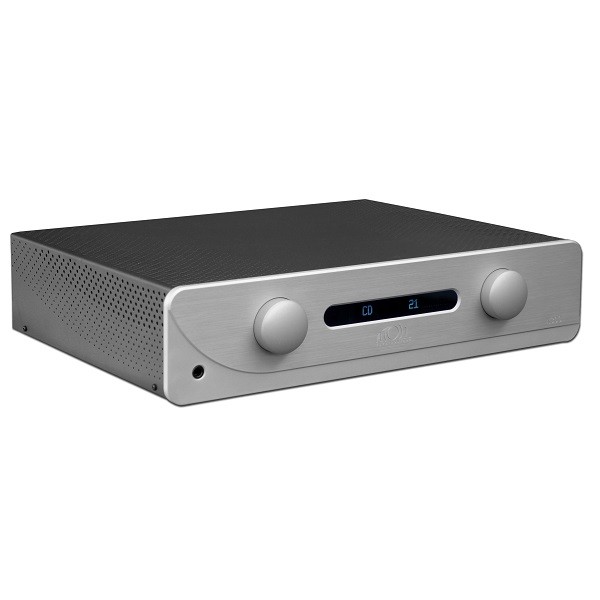

Specificatii Tehnice pentru ATOLL IN300
Power Wrms/channel: 150 Wrms/8Ω
260 Wrms/4Ω
Power Supply: 880 VA
Total of capacitors: 86400 µF
Input impedance: 220 kΩ
Dimensions: 440x320x100 mm
Weight: 15 Kg
DIGITAL BOARD:
– converter: AK4490: S/N: 120 dB dynamic 120dB.
– DSD: 2.8MHz and 5,6MHz.
– PCM from 16 bits to 32bits up to 384 kHz on USB (asynchronous).
– Up to 24Bits 192kHz on optical and coaxial.
– USB converter XMOS: XHRA-2HPA with a specific program for PCM and DSD specially developed for ATOLL.
LINK CAPACITORS:
Analog stages: Mundorf MKP in an armoured shell.
Digital stages: Vishay MKP high sound quality.

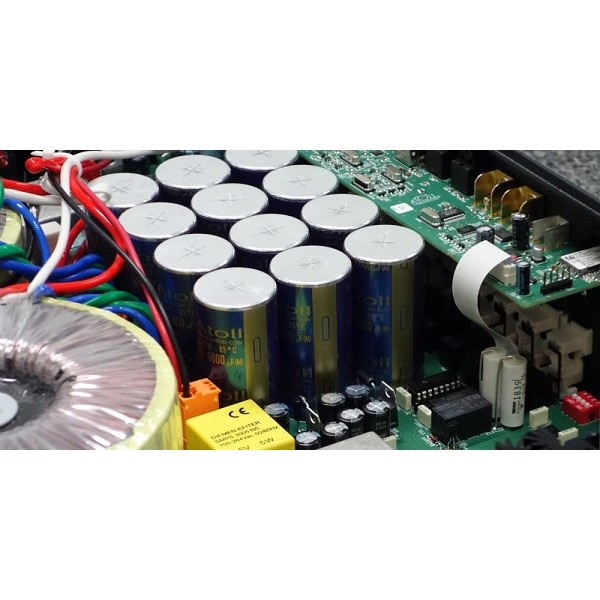

POWER STAGES:
Double mono with 2x440VA toroidal transformers.
Specific low consumption supply (5VA) for display and logic circuits.
Capacitors: 12x6800uF low ESR high quality designed specifically for ATOLL.
Soft starter stage to avoid current peek.
Internal Supply High-End cable (wired according to AC recommendation).
INPUT STAGES:
2 volume attenuators: 1 per channel.
High quality Silver Mica capacitors for soft low pass filter (very fast reaction on pulse).
Symmetrical bipolar stages (discrete components).
OUTPUT STAGES:
6 MOS FET per channel: 150Wrms/8Ohm, 260Wrms/4Ohm.
Very low feed global back stages that bring dynamic and natural sound.
Very low distortion due to a specific control stage of the driver transistors.
CONNECTIVITY:
High quality tellurium copper speakers terminals (ATOLL exclusive design).
High-End Speaker cable link.
Gold plated RCA inputs.

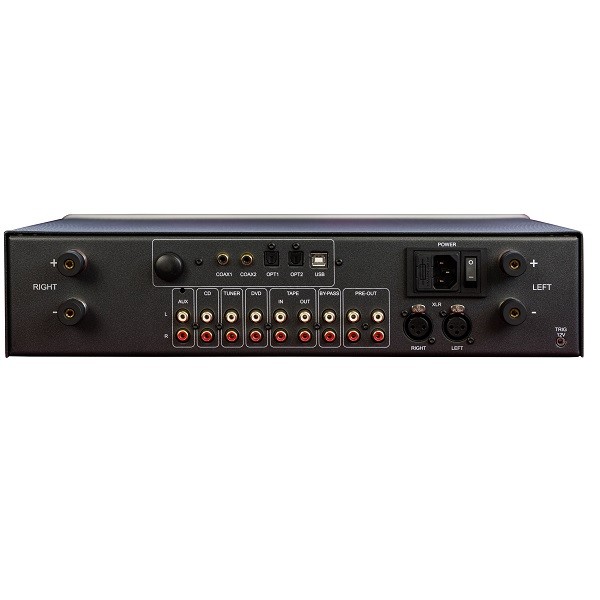

INPUTS:
Analog:
– 5 Inputs (with AUX for optional phono stage)
– 1 BY-PASS Input
– 1 XLR Input
Digital:
– 2 Coaxial Inputs
– 2 Optical Inputs
– 1 Bluetooth receiver
– 1 USB-B asynchronous Input
OUTPUTS:
1 pair of speakers OUT
2 Pre-out (for sub or additional power amp.)
1 Trigger Output
1 Headphones jack 6.35mm
FEATURES:
Balance setup

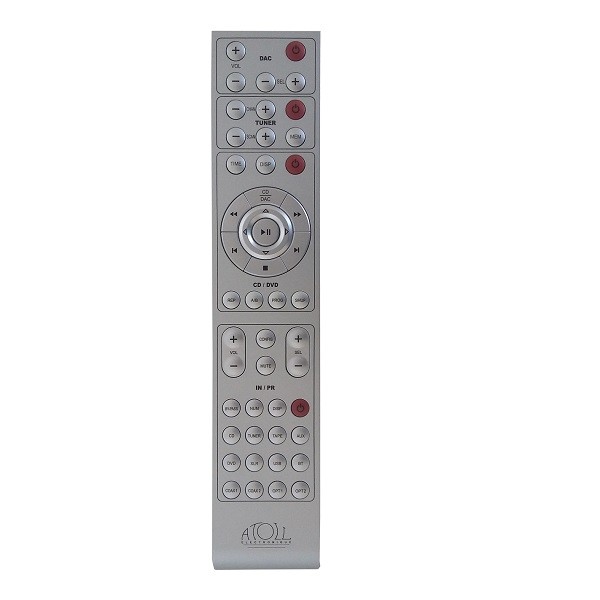

Global Remote control
Low noise and consumption OLED display
Black or silver front panel
