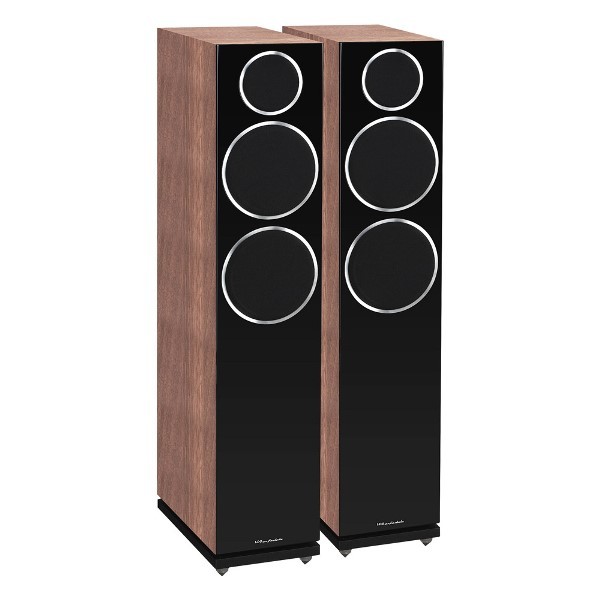

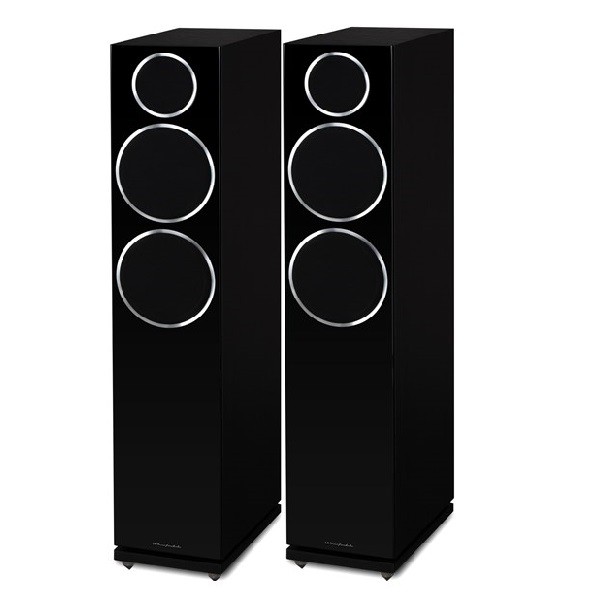

SPECIFICATII TEHNICE PENTRU BOXE WHARFEDALE DIAMOND 230
| General description | 2.5-way floorstanding speaker |
| Enclosure type | bass reflex |
| Transducer complement | 2.5-way |
| Bass driver | 165mm Woven Kevlar Cone |
| Midrange driver | 165mm Woven Kevlar Cone |
| Treble driver | 25mm Soft Dome |
| AV shield | No |
| Sensitivity(2.83V @ 1m) | 88dB |
| Recommended amplifier power | 25-150W |
| Peak SPL | 102dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 3.7Ω |
| Frequency response (+/-3dB) | 40Hz - 20kHz |
| Bass extension (-6dB) | 37Hz |
| Crossover frequency | 2.3kHz |
| Cabinet Volume (in litres) | 35L |
| Height (on plinth & spikes) | (938+25)mm |
| Width | 196mm |
| Depth (with terminals) | (306+28)mm |
| Carton size | 420x310x1060mm |
| Net weight | 17.8kg/pcs |
| Gross weight | 21.2kg/ctn |
Diamond 230 Review:
"For the money, you're getting a real deal" ★★★★★ - Diamond 230 Review, What Hi-Fi? Sound and Vision
"...it presents the soundstage in a clear and upfront manner. Because the three drive units integrate so well it sounds very sophisticated considering the price" ★★★★★ - Diamond 230 Review, Hi-Fi Choice
