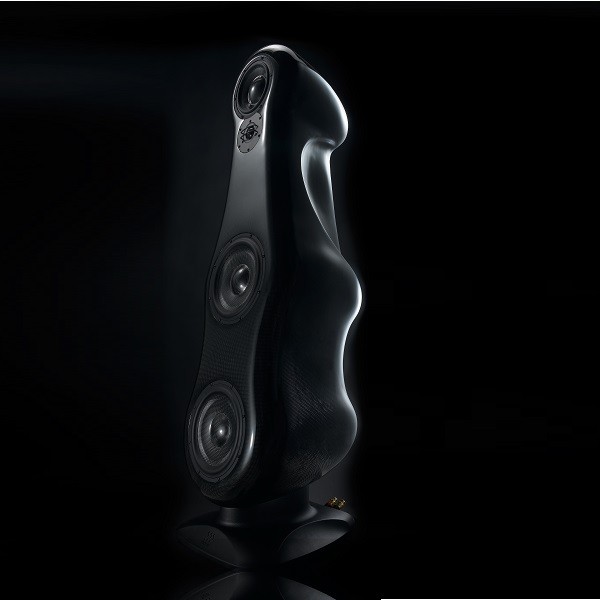

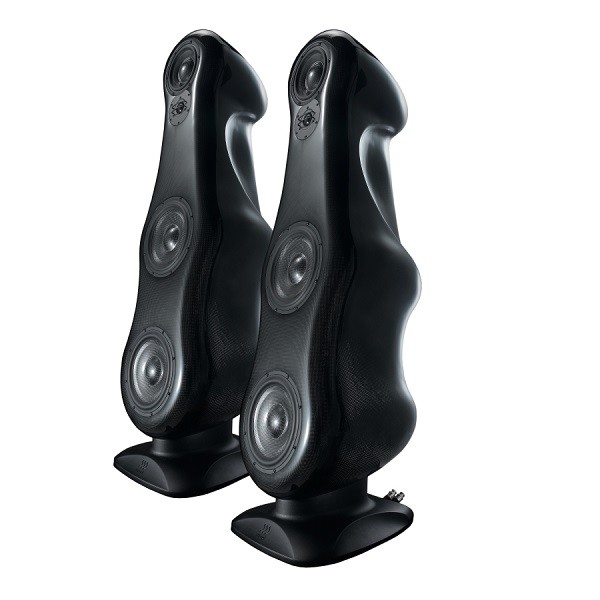

SPECIFICATII TEHNICE PENTRU MOREL FAT LADY
| Type | 3-way 4 drive units system |
| Construction | Composite of carbon fiber and fiber glass resin enclosure |
| Acoustical Loading | Ported (Bass reflex) |
| Drive Units |

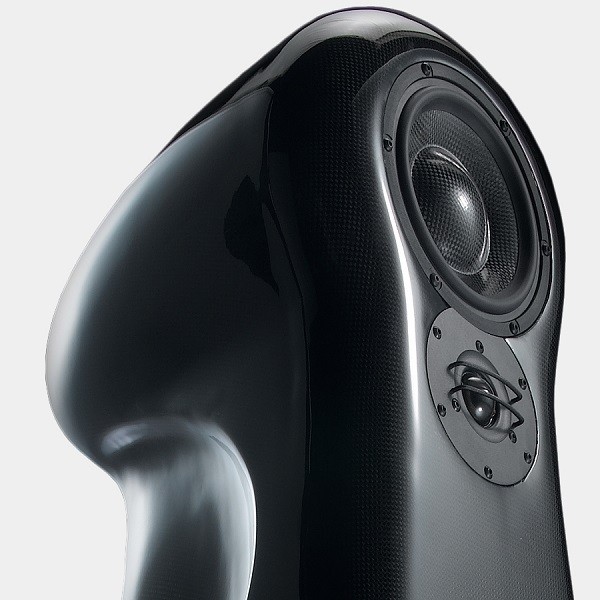

Woofer: 2 x 9" (222 mm) Carbon fiber - Rohacell sandwich cone type with integrated one piece dome, Hybrid™ double magnet motor, 3" (75 mm) EVC (External Voice Coil) long-throw Hexatech™ aluminum voice coil technology. Midrange: 6" (160 mm) Carbon fibre - Rohacell sandwich cone type with integrated one-piece dome, double Neodymium magnet motor, Supreme™ underhung 3" (75mm) EVC™ (External Voice Coil) Hexatech™ aluminum voice coil with linear impedance copper sleeve technology. Tweeter:Supreme™tweeter technology,1.1"(28mm) Acuflex™ hand-coated soft dome, pancake Neodymium magnet motor, underhung Hexatech™ aluminum voice coil. |
| Frequency Response | 20-22,000 Hz (40-18,000 Hz ±1.5 dB) |
| Crossover | 200Hz/ 2.2KHzw |
| Nominal Impedance | 4 ohm |
| Nominal Power Handling | 300 W |
| Peak Power Handling | 1,000W 10m/sec |
| Dispersion | Within 1.5 dB – 18,000Hz / Horizontal: over 60º / Vertical: over 20 º |
| Sensitivity 2.83V / 1M | 88 dB |
| Dimension (WxHxD) | 34 x 127 x 44 cm |
| Finishes | High gloss carbon fibre composite |
| Net Weight | 44 kg. / 97 lbs |
A unique starting point for the development of an inspirational loudspeaker system.
Morel needed to take a radical design stance in order to create a loudspeaker to be recognized by the hi-fi cognoscenti, with a form to stimulate the visual senses whilst not dominating the living space.
With more than three decades’ expertise of manufacturing some of the world’s finest loudspeaker drive units — used by many legendary hi-fi companies — expectations for the new design were high.
CABINET
The ideal cabinet for the fat-lady needs to be strong and light in weight. Light and strong are expressions associated with the design of high performance racing cars and aircrafts, so where better to look for materials to construct the cabinet.
For the composition of the fat lady enclosure, an outer layer of lacquered carbon fiber is optimally mixed with fiber glass and epoxy resin. Utilizing the very latest in manufacturing techniques, Morel have produced a mold that affords the R&D team total freedom to create a design that is both acoustically and visually sublime.
The curved shape with no straight lines is similar to a musical instrument. Unlike conventional loudspeakers it has absolutely no internal damping: the inside of the cabinet is empty. The cabinet is allowed to vibrate in a controlled manner along with the drive units and uses this energy as part of the reproduced sound.
The clever part is that the cabinet ‘sings’ with the drive unit but stops immediately when the drive unit stops so there are no delayed resonances. The result is a speaker that sounds as if it has no cabinet at all.
Awards:
COMPONENTS
The heart and soul of a loudspeaker are the components within it. These produce the sound, which is why it pays to select the finest available.
Most speaker companies purchase drive units from specialist manufacturers for their designs, and this often produces excellent results. Morel, however, designed, developed and fine tuned the drive units specifically for the fat lady. The difference in approach can be likened to buying a first class suit from a menswear store or having a bespoke suit made-to-measure in London’s Saville Row.
SOUND
It can be said the total is greater than the sum of its parts.
The fat lady really is a technical tour de force.
The true test of a loudspeaker is to listen to it. Be prepared for an emotional onslaught as soon as the music starts: expect to be captivated and drawn into the performance. Auditioning the fat lady promises to be a very tactile and exciting experience.
