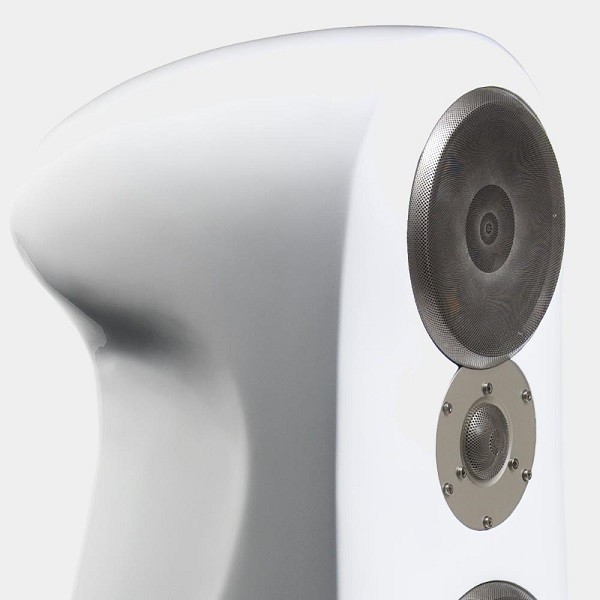

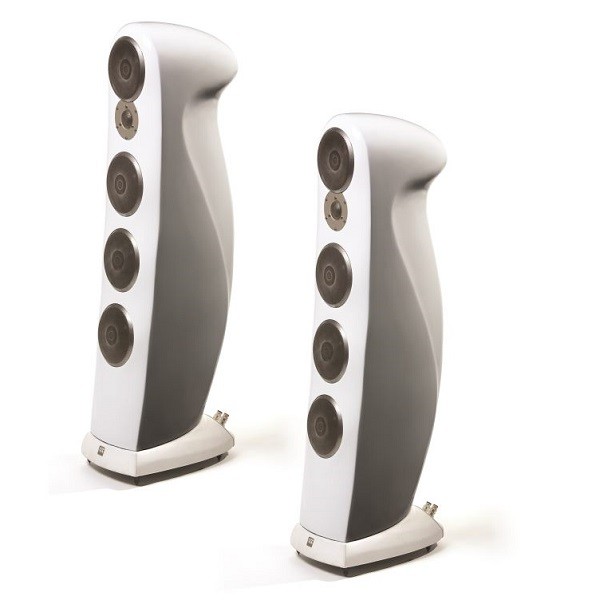

Morel Sopran

   Boxe MOREL SOPRAN - A combination of creative vision and acoustic physics – get all the drama and dynamics of the original sound, for a tactile musical experience







More details

SPECIFICATII TEHNICE PENTRU MOREL SOPRAN



Type

3-way 5 drive unit system

Construction

Composite of carbon fiber and fiber glass resin enclosure with hand polish piano paint finish

Acoustical Loading

Bass: 3 in line Ports Ported (Bass reflex tuned to 28 Hz)

Mid: in line port

Drive Units

Woofer: 3X6" (160 mm) DPC (Damped Polymer Composite) cone type with integrated one piece dome, Hybrid™ double magnet motor, 3" (75 mm) EVC (External Voice Coil) long-throw Hexatech™ aluminum voice coil. New Titanium Former technology.

Midrange: 6" (160 mm) with linear impedance cooper sleeve technology, DPC (Damped Polymer Composite) cone type with integrated one piece dome, Hybrid™ double magnet motor, 3" (75 mm) EVC (External Voice Coil) long-throw Hexatech™ aluminum voice coil. New Titanium Former technology, with linear impedance copper sleeve technology.

Tweeter:  1.1" (28mm) Acuflex™ hand-crafted soft dome, triple ferrite magnet motor, Hexatech™ aluminum voice coil

Frequency Response

30-22,000 Hz (45-18,000 Hz ±1.5 dB)

Nominal Impedance

4ohm

Nominal Power Handling

250 W

Peak Power Handling

1,000W 10m/sec

Dispersion

Within 1.5 dB – 18,000Hz / Horizontal: over 60º / Vertical: over 20 º

Sensitivity 2.83V / 1M

91.5 dB

Crossover

250Hz/ 2.2Khz

Dimension (WxHxD)

255 x 430 x 1135 cm / 10" x 16.9" x 44.6"

Finishes

Piano glass black or piano glass white

Net Weight

31.5 kg

Winner of the 2013 CES Design and Engineering Innovations award, the Sopran fully embodies the idea that “form follows function”. The cabinet eschews conventional boxy design in favor of curved lines, not merely for the sake of aesthetics, but for improved speaker performance. The Sopran 3-way (which includes five drive units) is a combination of creative vision and acoustic physics. The curved fibre-glass cabinet eliminates internal standing waves even with no internal absorption material. The result is a speaker so transparent and natural that it sounds as if there was no cabinet at all.

For tight and controlled bass reproduction a new in-line port technology was developed, molding the speaker’s back “spine” appearance for a significantly improved soundstage and realism. Add to that the latest in transducer technology from Morel: The new 6-inch drivers utilize a titanium support mechanism that transfers the motor force to the membrane with minimal energy lose to preserve the drama and dynamics of the original sound, creating a tactile musical experience.

 Awards:
