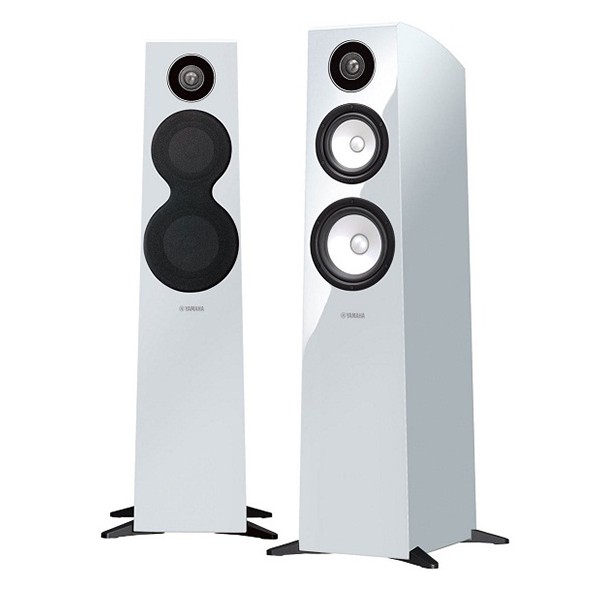

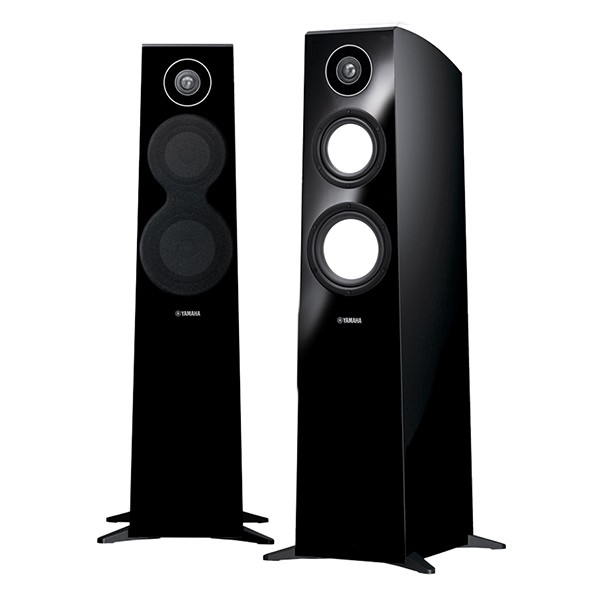

specificatii tehnice pentru YAMAHA NS-F700
| Recommended Usage | Floorstanding Speakers | ||||
|---|---|---|---|---|---|
| Type | 3-Way Bass Reflex | ||||
| Woofers | 6 1/2" Advanced PMD Cone | ||||
| MidRange Driver | 5" Advanced PMD Cone | ||||
| Tweeters | 1 1/8" Aluminum Dome | ||||
| DC-Diaphragm | Yes | ||||
| Gold-Plated Brass Extruded Terminals | Yes | ||||
| Frequency Response | 45 Hz - 50 kHz | ||||
| Sensitivity | 89 dB/2.83 V/1 m | ||||
| Input Power (Maximum / Nominal) | 160W / 40W | ||||
| Crossover Frequencies | 700 Hz, 4 kHz | ||||
| Impedance | 6 Ohms | ||||
| Product Dimensions (W x H x D) | 9 1/16" x 39 3/8" x 13 13/16" | ||||
| Product Weight (lbs.) | 55.1 lbs. | ||||
- 3-way bass-reflex floorstanding speaker system for front channels
- Rounded top panel reduces vertical standing waves; trapezoidal cabinet shape reduces horizontal standing waves
- Advanced PMD cone woofer and midrange driver
- Aluminium dome tweeter with DC-Diaphragm™
- Three-way mitered-joint construction
