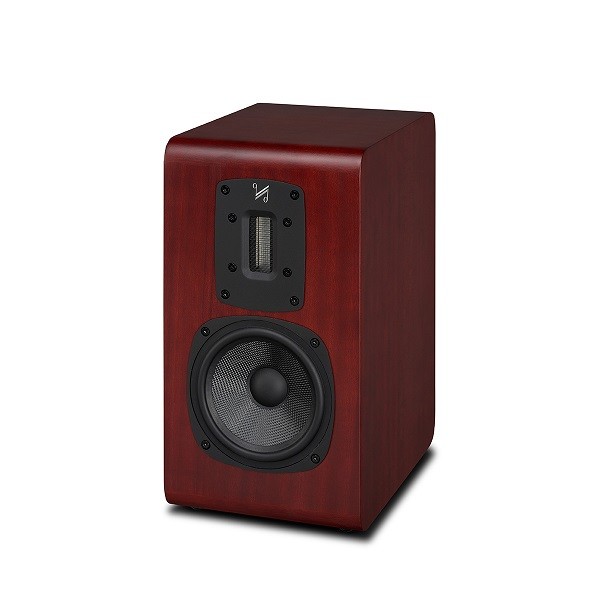

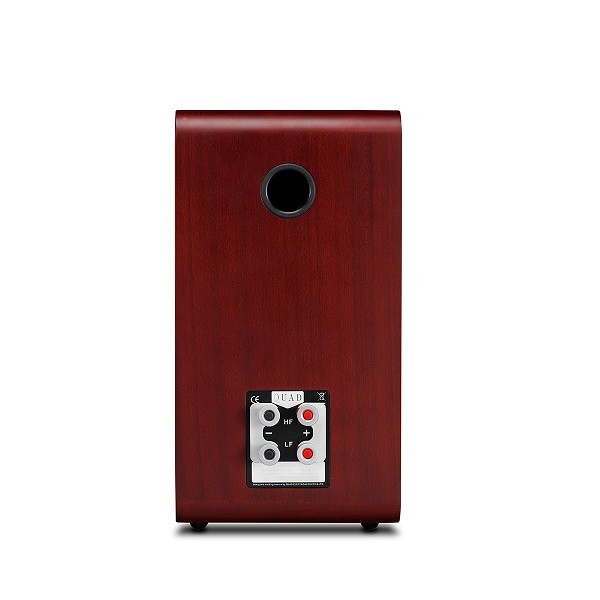

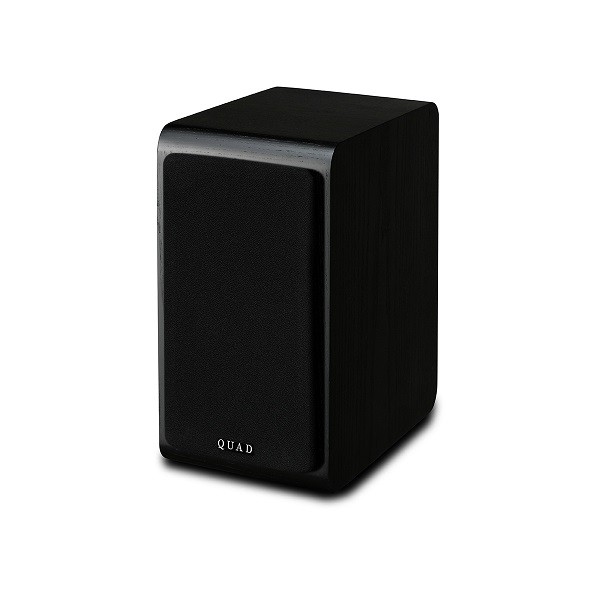

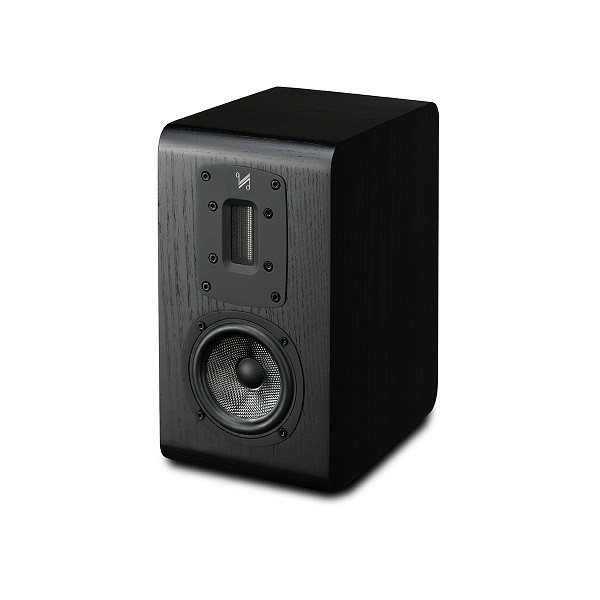

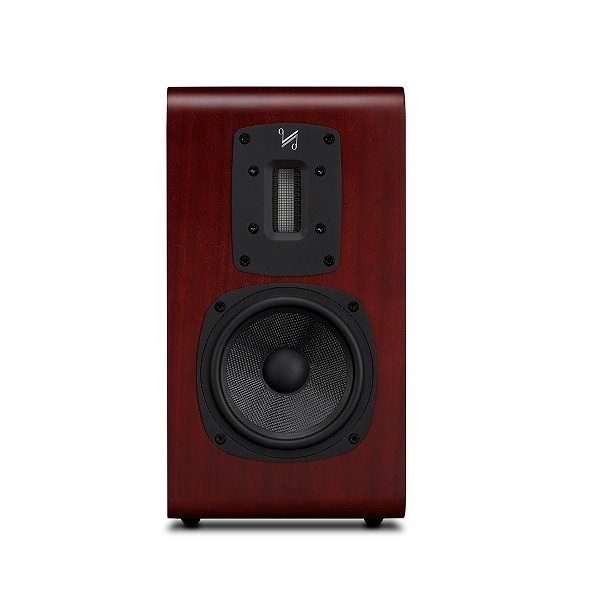

SPECIFICATII TEHNICE PENTRU QUAD s-2
| General description | 2-way bookshelf speaker |
| Enclosure type | vented box loudspeaker |
| Transducer complement | 2-way |
| Bass / Midrange Driver | 5"(125mm)woven Kevlar cone |
| Treble driver | 12 x 45 mm True Ribbon |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 87dB |
| Recommended amplifier power | 25-150W |
| Peak SPL | 108dB |
| Nominal impedance | 8Ω Compatible |
| Minimum impedance | 4.5Ω |
| Frequency response (+/-3dB) | 48Hz ~ 22kHz |
| Bass extension (-6dB) | 37Hz |
| Crossover frequency | 3kHz |
| Cabinet Volume (in litres) | 8.15L |
| Dimensions (H x W x D) | 330 x 180 x (260+30)mm |
| Weight | 6.1kg |
