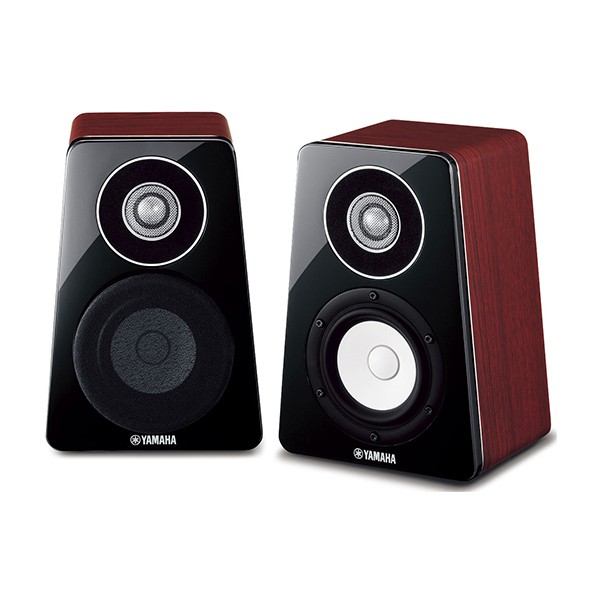

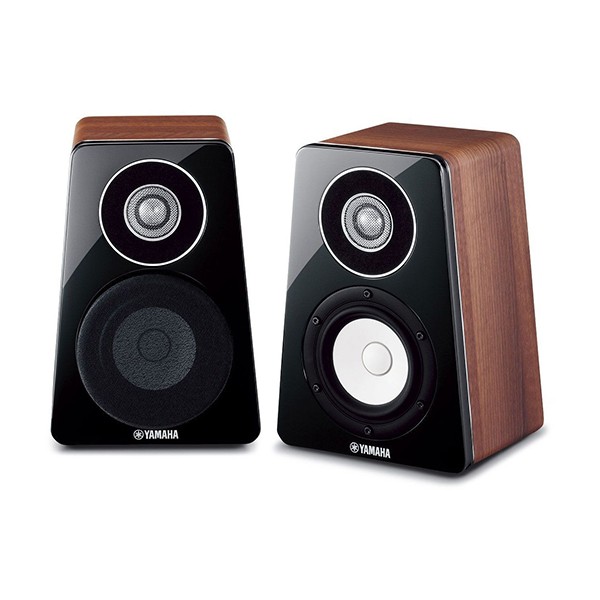

specificatii tehnice pentru Boxe YAMAHA NS-B500
| Type |
2-Way Acoustic Suspension Speaker System | |
|---|---|---|
| Woofers | 12cm Advanced PMD cone | |
| Tweeter | 3cm aluminium dome with DC-Diaphragm™ | |
| Frequency Response | 50 Hz-50 kHz | |
| Nominal Input Power | 30 W | |
| Maximum Input Power | 120 W | |
| Sensitivity | 84 dB | |
| Crossover Frequencies | 4.2 kHz | |
| Impedance | 6 ohms | |
| Dimensions (W x H x D) | 190 x 284 x 177 mm | |
| Weight | 3.5 kg | |
Spacious, dimensional sound from the DC-Diaphragm tweeter
Using precision manufacturing technology, the voice coil for the tweeter Is wrapped directly over the aluminum-magnesium alloy
diaphragm.
This design delivers increased amounts of sound information for smooth reproduction over an exceptionally wide sound spectrum.
A-PMD cone and solid rubber surround for deeply satisfying sound
The woofer utilizes Yamaha's unique A-PMD together with a solid rubber surround.
In conjunction with the large-diameter magnet structure, this assures rich, satisfying reproduction of mid-range and bass.
Non-magnetic shielded for clear initial sound
The entire unit is non-shielded, achieving impressively clear initial sound without distortion from magnetic shielding circuits.
Quality cabinet construction to assure reliable sound
Thanks to Yamaha's traditional expertise in cabinetry, starting with its three-way mitered joint construction, sound quality is natural and consistent.
The higher you turn the volume, the more impressed you'll be with the rich, clear sound from these compact units.
