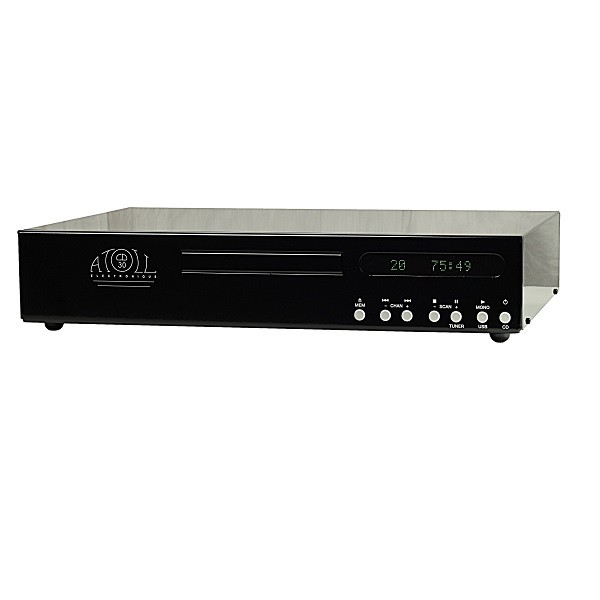

Atoll CD30

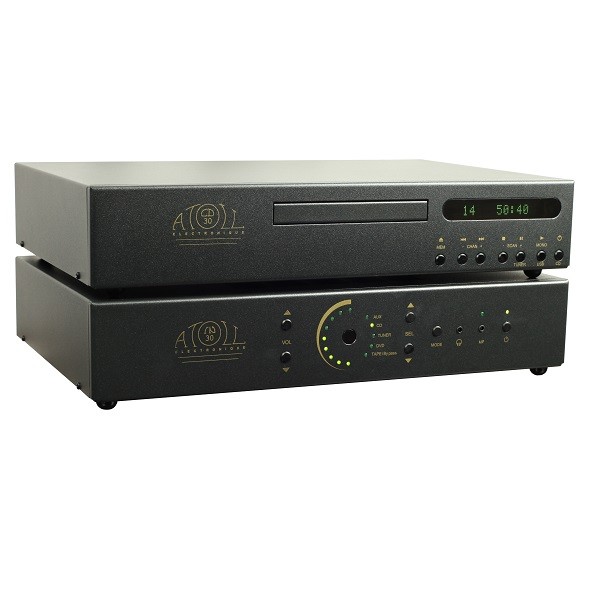

  CD PLAYER ATOLL CD30 -  Based on the same design of the integrated IN30, ATOLL propose its ideal complement with a multisource product, the CD30, including: CD player, USB input  and TUNER FM (Optional) Equipped with a high‐quality FM receiver.





More details

 SPECIFICATII TEHNICE PENTRU ATOLL CD30




CD30

USB

TUNER

Supply

15,5 + 3,6 VA





Total of capacitors

14 000 µF





Output Stage

symetrical / discret

Rising Time

2 µs

Output Level

2,5 VRMS

2,5 VRMS

2 VRMS

Converter (N/A) :

24 bits / 192 kHz

24 bits / 192 kHz

24 bits / 192 kHz

Signal/Noise Ratio

105 dB

95 dB

75 dB

Distortion at 1kHz

< 0,005 %

< 0,03 %

< 0,2 %

Dynamic

105 dB

88 dB

75 dB

Bandwidth

5-20 kHz

5-20 kHz

20-20 kHz

Dimensions

440*280*90 mm

Weight

4,5 Kg

CD30 characteristics:

  • Original transport drive from TEAC (compatible CD, CD-R, CD-RW; MP3 format; CD text) ;
  • Converter Wolfson WM8729 ;
  • Audio stages with discrete components, symetrical scheme ;
  • USB input (USB host) ;
  • Dot matrix display ;

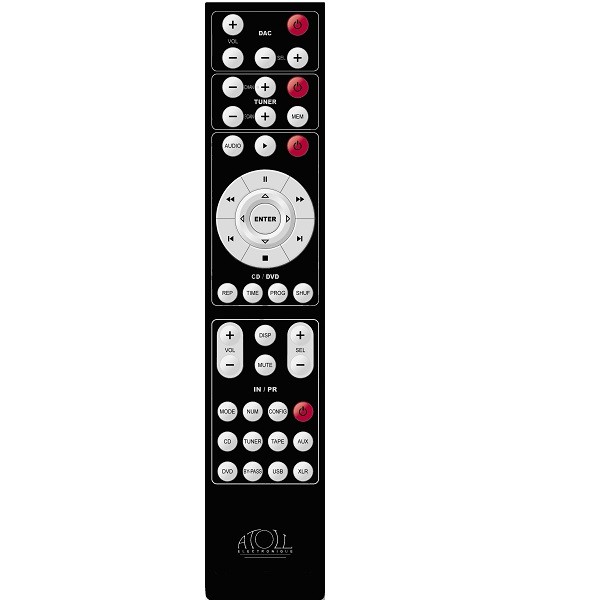

  • ATOLL global remote control on serial ;
