Atoll CD50SE2

  CD PLAYER ATOLL CD50SE2 has a specific supply for the analog section and a high value output stages.

  • 5 regulated supplies
  • Wolfson converter WM8729 (dynamic and signal/noise ratio of 106db)
  • Total of capacitors of 14 000 µF
  • MKT condensators
  • A class Output stage with bipolar transistors



More details

SPECIFICATII TEHNICE PENTRU ATOLL CD50SE2


Supply

15,5+3,6 VA

Total of capacitors

14 000 µF

Output Stage

Symétrical / discrete

Output Level

2,5 VRMS

Output Impedance

75Ώ

Converter (D/A)

24 Bit / 192kHz

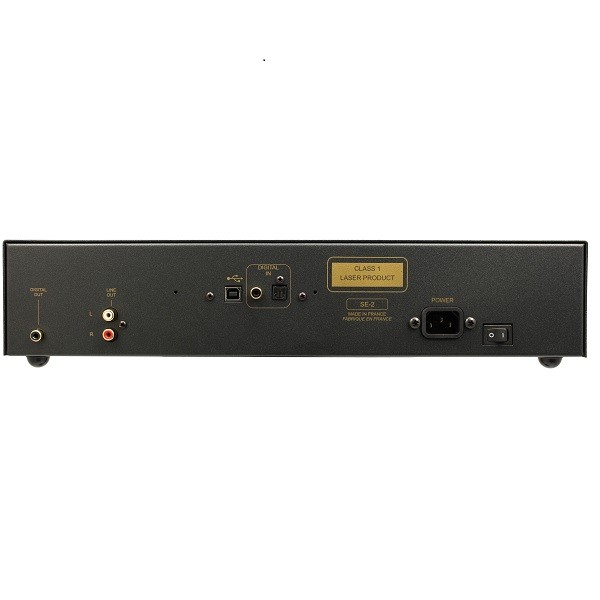

Digital Output

Coaxial

Signal/Noise Ratio

105 dB

Distortion at 1kHz

< 0,002 %

Bandwidth

5–20 kHz

Rising Time

2 µs

Dimensions (mm)

440x280x90

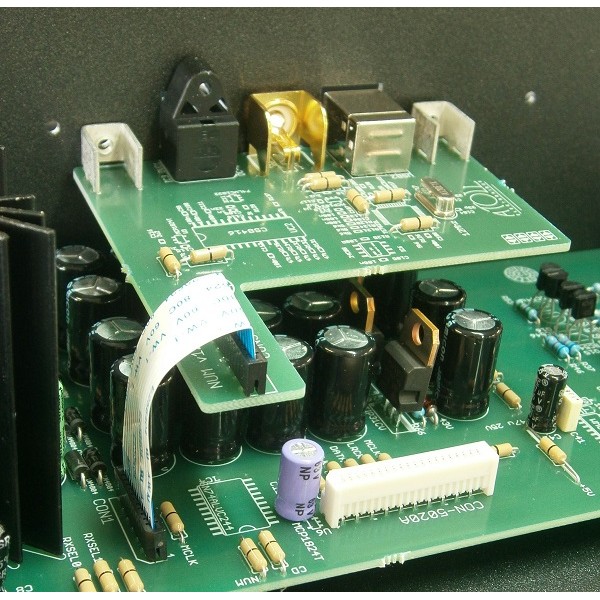

The CD50se2 can be equipped with an optional board including 3 digital inputs:
- 1 digital input Coaxial
- 1 digital input Optical
- 1 USB input

Digital inputs (coaxial & optical) allows to convert the digital signals up to 24 bits/192kHz.
The USB input (B type) allows the conversion of files up to 24 bit/96 kHz.
The selection of the digital inputs is directly accessible from the remote control or the keys of the front panel.

All CD players are equipped with a serial remote that allows to control other ATOLL's devices (Integrated, preamp, Tuner, DAC).

It also allows several basic functions of the CD player such as program, repeat, random, etc.
