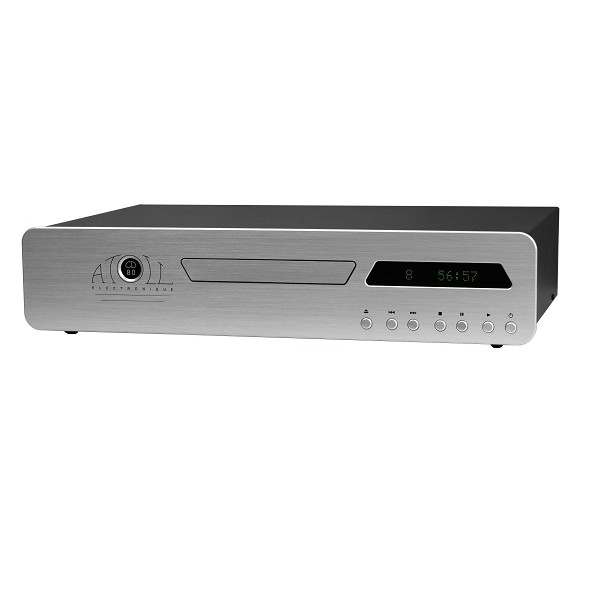

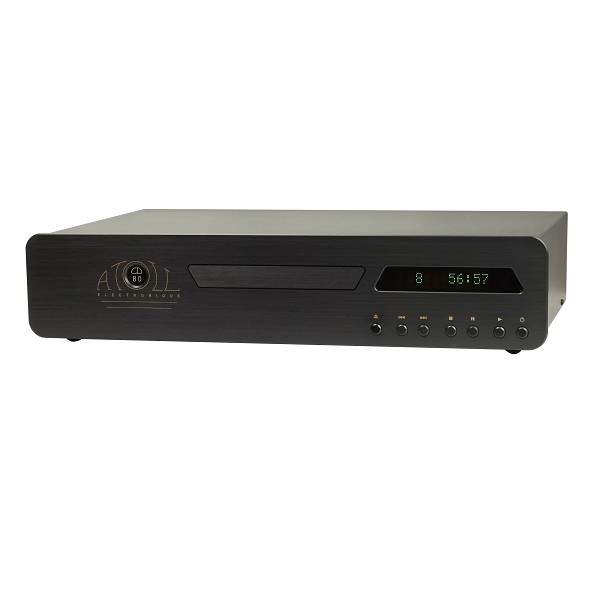

Atoll CD80SE2

  CD PLAYER ATOLL CD80SE2 - a symmetrical output stages with discrete components polarized on A class.

  • 7 regulated supplies
  • Wolfson converter WM8729 (dynamic and signal/noise ratio of 106db)
  • Total of capacitors of 17 000 µF
  • MKT condensators
  • A class Output stage with bipolar transistors





More details

SPECIFICATII TEHNICE PENTRU ATOLL CD80SE2


Supply 15,5+3,6 VA
Total of capacitors 17 000 µF
Output Stage Symétrical / discrete
Output Level 2,5 VRMS
Output Impedance 75Ώ
Converter (D/A) 24 Bit / 192kHz

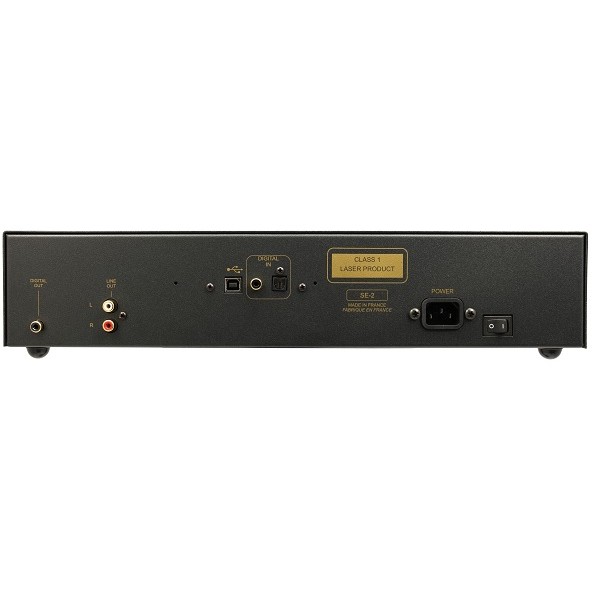

Digital Output Coaxial
Signal/Noise Ratio 105 dB
Distortion at 1kHz < 0,002 %
Bandwidth 5–20 kHz
Rising Time 2 µs
Dimensions (mm) 440x280x90
Weight 5 kg

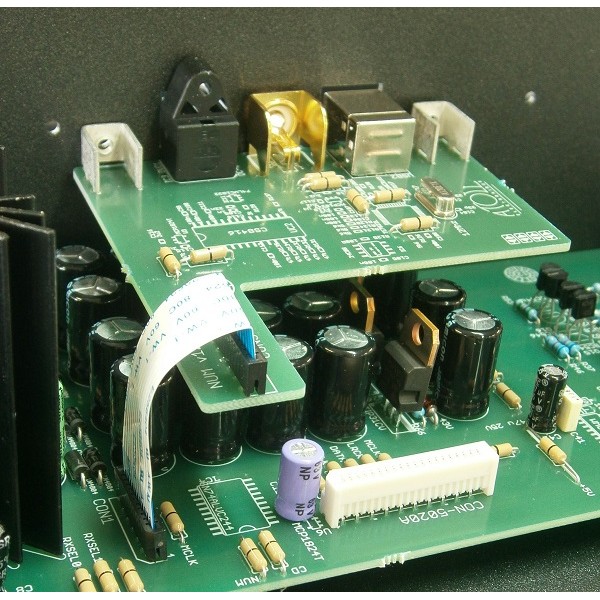

The CD80se2 can be equipped with an optional board including 3 digital inputs:
– 1 digital input Coaxial
– 1 digital input Optical
– 1 USB input


Digital inputs (coaxial & optical) allows to convert the digital signals up to 24 bits/192kHz.
The USB input (B type) allows the conversion of files up to 24 bit/96 kHz.
The selection of the digital inputs is directly accessible from the remote control or the keys of the front panel.
All CD players are equipped with a serial remote that allows to control other ATOLL’s devices (Integrated, preamp, Tuner, DAC).
It also allows several basic functions of the CD player such as program, repeat, random, etc.
