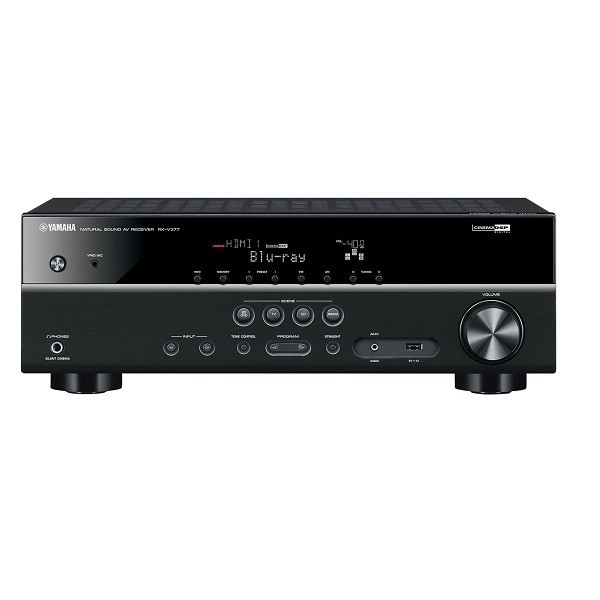

specificatii tehnice pentru Receiver Yamaha RX-V377
| Amplifier Section | Channel | 5.1 |
|---|---|---|
| Rated Output Power (1kHz, 1ch driven) | 100 W (6ohms, 0.9% THD) | |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 70 W (6ohms, 0.09% THD) | |
| Maximum Effective Output Power (1kHz, 1ch driven) (JEITA) | 135 W (6ohms, 10% THD) | |
| Dynamic Power per Channel (8/6/4/2 ohms) | - / 110 / 130 / 150 W | |
| Surround Sound Processing | CINEMA DSP | Yes |
| DSP Programs | 17 | |
| SILENT CINEMA / Virtual CINEMA DSP | Yes (Virtual CINEMA FRONT) | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| DTS-HD Master Audio | Yes | |
| Audio Features | Compressed Music Enhancer | Yes |
| YPAO sound optimization | Yes | |
| Adaptive DRC (Dynamic Range Control) | Yes | |
| Initial Volume & Maximum Volume Setting | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| 192kHz/24-bit DACs for all channels | Yes (Burr-Brown) | |
| Video Features | 4K Ultra HD Pass-through | Yes |
| HDMI 3D passthrough | Yes | |
| HDMI Audio Return Channel | Yes | |
| Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | Yes | |
| Connectivity | HDMI Input/Output | 4 / 1 |
| HDMI CEC | Yes | |
| USB Input | iPod / iPhone, USB Memory, Portable Audio Player | |
| Front AV Input | USB / Mini Jack | |
| DC Out | Yes | |
| Digital Audio Input/Output: Optical | 1 / 0 | |
| Digital Audio Input/Output: Coaxial | 2 / 0 | |
| Analog Audio Input/Output | 4 (front 1) / 1 | |
| Component Video Input/Output | 2 / 1 | |
| Composite Video Input/Output | 3 / 2 | |
| Preout | SW | |
| Headphone Output | 1 | |
| Tuner Section | FM/AM Tuner | Yes |
| User Interface | On-screen display | Yes |
| SCENE | SCENE (4 sets) | |
| Remote Control Unit | Yes | |
| General | Standby Power Consumption (IR only) | ≤0.3W |
| Auto Power Standby | Yes | |
| ECO mode | Yes | |
| Dimensions (W x H x D) | 435 x 151 x 315 mm; 17-1/8” x 6” x 12-3/8” | |
| Weight | 7.4 kg; 16.3 lbs. |
- 5-channel powerful surround sound
- --- 100W per Channel (6 ohms, 1 kHz, 0.9 % THD, 1 ch driven)
- --- 70W per Channel (6 ohms, 20Hz-20kHz, 0.09 % THD, 2 ch driven)
- --- 135W per Channel (6 ohms, 1kHz, 10% THD, 1ch driven, JEITA)
- Discrete amp configuration
- HDMI (4 in / 1 out) with 4K Ultra HD pass-through for super high resolution images
- Front panel USB Digital Connection for iPod and iPhone
- YPAO sound optimisation for automatic speaker setup
- Extra Bass enriches powerful bass sound even with small speakers
- Virtual CINEMA FRONT provides virtual surround sound with 5 speakers in front
- Multi language colour OSD for improved visibility (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)
- ECO mode operation for about 20% less power consumption
