Morel SoundSpot MT-3

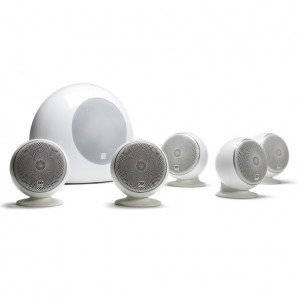

  Pachet home cinema Morel SoundSpot MT-3 New design goals and the quest for an even higher performance level make this new sub/sat system the closest ever to a high fidelity floor-standing 5.1 system.

More details

SPECIFICATII TEHNICE PENTRU Home Cinema MORELSOUNDSPOT  MT-3



New design goals and the quest for an even higher performance level make this new sub/sat system the closest ever to a high fidelity floor-standing 5.1 system.
The SoundSpot™ MT-3 was engineered for both home theatre and small Hi-Fi stereo systems applications, combining some of the most advanced innovative technologies and materials available with the finest craftsmanship and discrete design.

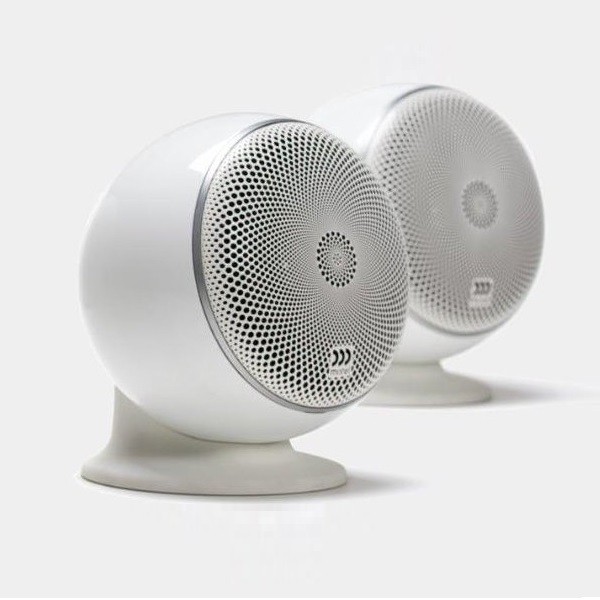

Comprised of the new SP-3, that is able to produce a mid/bass frequency sounding deep and robust – an incredible achievement from a 1.7 L enclosure. The base design allows a 270-degree lateral and 80-degree vertical adjustment, for total sound filed control while enabling the installer all on-wall mounting options, locking it into the desired position with a single screw.

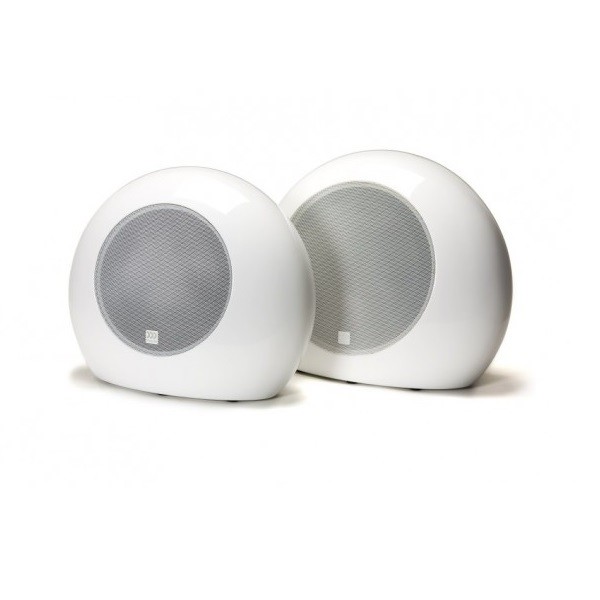

Complementing the SP-3 is the  SoundSub™ PSW8ew  featuring a fibre-glass composite enclosure, fitted with an 8-inch bass unit and a high power woofer driven by a 150W amplifier.

MT-3 Compact is a great solution for smaller rooms with a much smaller footprint. It incorporates the new PSW150ew fitted with a 7-inch high power woofer driven by a 150W amplifier. Both SoundSub™ PSW8ew and the new PSW150ew supply seamless acoustic integration for the SoundSpot™ series while delivering a rich deep bass sound.

The MT-3 provides high quality sound performance with clarity and depth usually excepted from a full sub/bookshelf system. It will definitely place you at the heart of the action in your favorite multi-channel movie or make you feel as if you are at a live musical performance.



Awards:



SPECIFICATII TEHNICE PENTRU MOREL sp-3



Construction

Steel sphere enclosure

Enclosure Diameter

6.3" (160 mm)

Drive units

Woofer: 4" (100 mm) woofer with 1.2" (32 mm) high temperature voice coil, ferrite magnet motor.Tweeter: Soft dome ¾" (19 mm) liquid-cooled voice coil, neodymium magnet motor

Acoustic Loading Nominal impedance

Bass reflex tuned to 90Hz 6 ohm

Power handling

90W (160W Transients)

Operating power

15-120W

Crossover

2,200Hz 12dB / Octave

Frequency response

80-22,000Hz (-5dB)

Sensitivity 2.83V/1M

89dB

Net weight

3.7 lbs (1.7 Kg)

Finish

Piano white, Piano black


 SPECIFICATII TEHNICE PENTRU MOREL psW150EW/psw8EW



SPECIFICATIONS

SOUNDSUB™ PSW8ew

SOUNDSUB™ PSW150ew

Construction

Fiberglass composite resin

Fiberglass composite resin

Dimensions (Ø)

16″ x 13″ x 9″ (41cm x 35cm x 23cm)

12" x 14 " x 9" (305mm x 360mm x 230mm)

Drive units

8″ (203mm) Flat-profile woofer with 2″ (50mm) voice coil and rear-vented magnet.

One 7″(175mm)  woofer with 2″ (50mm) voice coil and rear-vented magnet motor

Frequency response

30-160 Hz

35-200Hz

Amplifier

150W continuous power. All formats compatible with automatic on/off switch, level , crossover and phase controls

150W, continues power, all formats compatible with automatic on/off switch, level, crossover and phase control

Input

Line-level RCA phono jack

Line-level RCA phono jack / Unbalanced RCA Line In port

Voltage

100-240VAC 50/60Hz with main supply automatic voltage selector

100-240VAC 50/60Hz with main supply automatic voltage selector

Net weight

23 lbs (10 Kg)

16.5 lbs (7.5 kgs)

Finish

Piano white, Piano black

Piano white, Piano black
