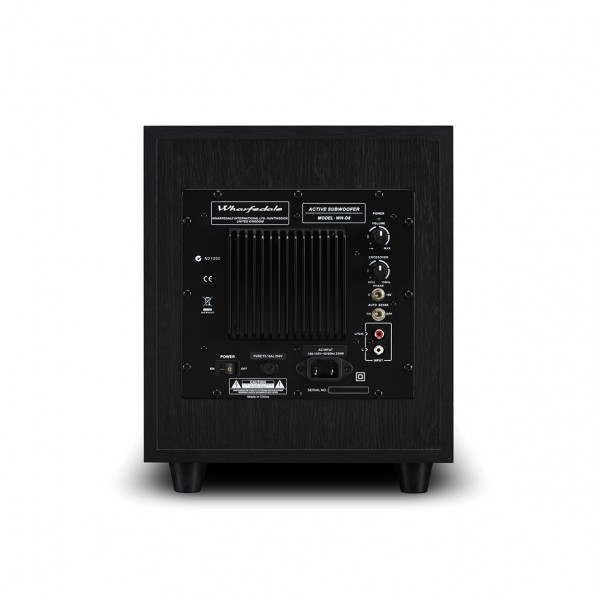

Wharfedale WH-D8

  Subwoofer WHARFEDALE WH-D8 -  Utilising technology honed in the popular WH-S8 an WH-S10, the new D8 and D10 subwoofers are the perfect way of enhancing your stereo or home system to produce excellent low end performance









More details

SPECIFICATII TEHNICE PENTRU SUBWOOFER WHARFEDALE WH-D8

The cabinet construction of the new D8 has been aestetically enhanced, with new high-gloss lacquered front baffles and cosmetically enhanced veneers. Not only is this a significant improvement, the new look is designed to match perfectly with the new and award winning Diamond 200 series, which is already gaining outstanding reviews internationally.

Aside from newly improved aesthetics, the two new subwoffers are built to elecate the performance of any AV setup. The D8 features an active feflex subwoofer system in a vented box allowing it to pack speed, punch and excellent low frequency extension.

Key Features

  • Low pass filter slope continuously adjustable from 40Hz - 150Hz
  • Phase invert switch
  • Low frequency bass extension (below 30Hz), with a wide 86dB dynamic range
  • Low lefel inputs, dedicated LFE input
  • Auto power sensor



Description/Format Active Dynamic-Drive IB subwoofer system
Drive Units 1 x 8" (200mm) cone long-throw
Frequency Response (+/-3dB) 40Hz - 120Hz
Amplifier Power Output 70W
Peak Power Output 150W
Line Input Sensitivity 100mV for maximum output
Crossover Range 40Hz - 150Hz
Inputs Stereo Line In (2 x RCA Phono)
Mono (LFE) Line In (RCA Phono)
Signal-to-noise ratio (S/N) 85dB
Avg. Max Output @1m 105dB
Features Low pass filter slope adjustment
Phase inversion
Auto on/off
Dimensions (H x W x D) 298mm + (30mm) x 268mm x 300mm (+22mm)
Net weight 7.5kg
Gross weight 9.1kg
Accessories IEC power cord, spikes as standard
