Supra CombiCon Kit

Supra CombiCon Kit

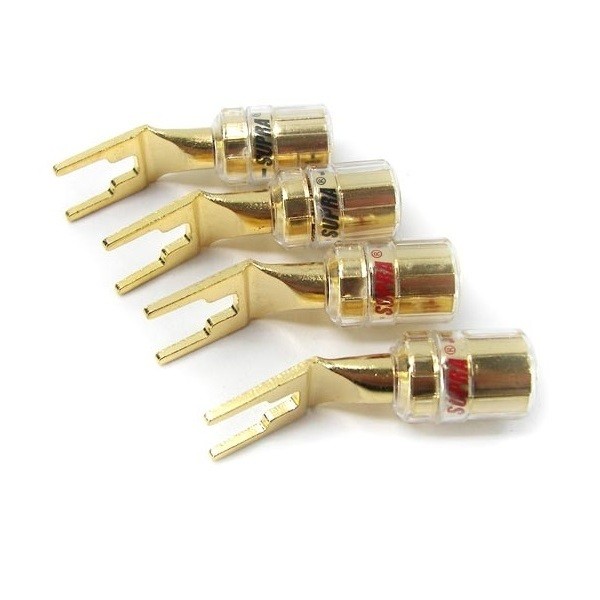

24K gold plated loudspeaker connector for cables up to 6mm2. The banana pin fits also BFA terminals. The Spade part is made of solid 24K gold plated Copper with M6 thread. The Spade is angled for easier mounting in tight spaces. It has a two- step, width opening.
The cable can be attached straight on axis or at a 90 degree angle.

More details



SPECIFICATII TEHNICE

Mechanical Specifications

Qty / Pack:

2 + 2 pairs

Connector:

Fork/Spade

Connector:

Banana

Material:

24k Gold Plated Cu

Cable Connection:

Nut Fixing

Max Cable Area:

6 / 9 mm2/AWG

External Size DxL:

D13x20,5 mm

Colour Identification:

Red / Black



A set of:
2 pairs of Connector Body M6
4 pcs of Spade part M6
4 pcs of Banana/BFA pin M6


CombiCon M6 Series

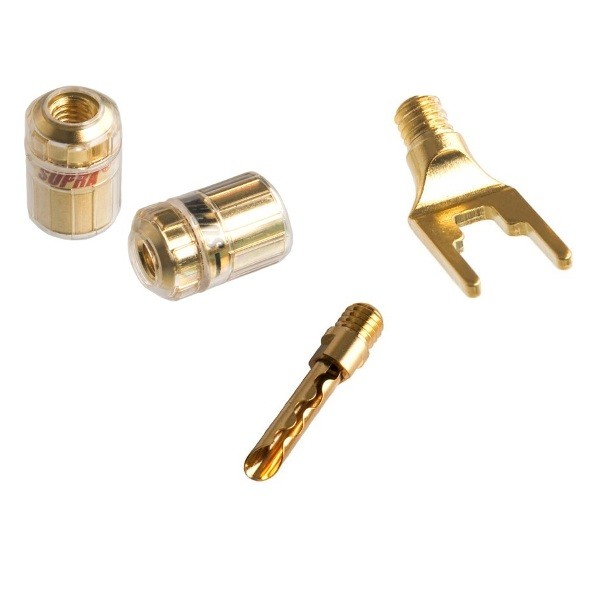

This combination connector comprises two parts: a termination part to be screwed onto a connector body. The connector part is of two types; Spade and Banana pin, which in turn also fit BFA plugs.

The Connector Body M6

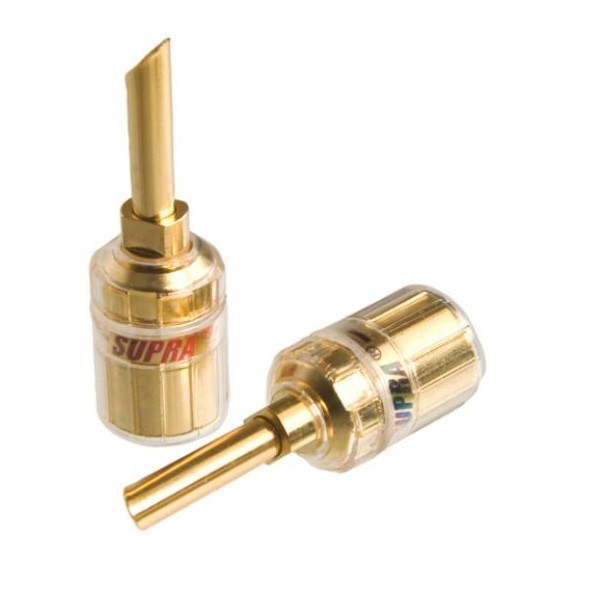

The connector body can be attached to the cable either on axis or in a 90 degree angle. See the R.H. picture. Also a spade terminated cable can be attached to the connector body. Printing in red and black, respectively, for polarity identification.

The Termination Parts M6
The Banana pin also fits BFA connectors. The Spade is angled for easier mounting in tight spaces. It has a two- step, width opening.
